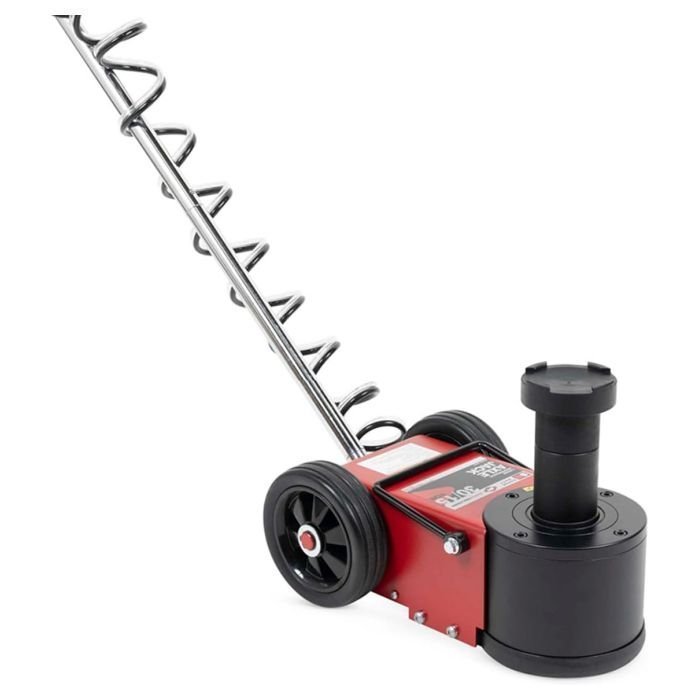

The American Forge & Foundry's 30-15-Ton 2-Stage Air Hydraulic Axle Jack is a super-duty axle jack built tough for the rigors of the heavy-duty trucking, agricultural, and fleet business. Features include industrial technology piston head seal design, extra long handle with three locking positions, integral descent metering, single piece base construction, double-polished chrome pistons, air-assisted lowering speed, and built-in overload safety valve. Includes saddle adapter and two extensions 1.75″ and 3″. The standard AFF (1) Year Warranty applies to over 300 service centers nationwide.
Features
- The Extra Light Weight And Portability Makes This The Ideal Service Jack For Service Vehicles
- 2 Stages And Lifting Capacities Of 30 And 15 Ton Make This A Very Versatile Jack
- The Extra Long Removable Handle And Rugged Rear Wheels Make For Easy Positioning Of This Jack In Hard To Reach Places
- An Integral Descent Metering Valve Maintains A Controlled And Safe Lowering Of The Load
- The Piston Head Seal Design Is Borrowed From Industrial Technology Providing A Superior Low And High-Pressure Seal, Giving This Jack A Much Better Hold Under Severe Load Conditions
- Double Polished Chromed Pistons Allow For Much Tighter Tolerances Which Reduces Oil Bypassing And Reduces Ram Scoring
- Air-Assisted Lowering Speeds Up Ram Retraction
- Built Overload Safety Valve Prevents Damage To Unit Due To Excessive Load
- Comes With 2 Extensions 3″ (75mm) + 2″ (45mm) And Saddle Adapter
- Units Are Tested To -13°F (-25°C) And +113°F (+45°C) As Well As Center Loading To Ensure A Long Life Under Even The Harshest Conditions
Specifications
- 30-Ton (1st Stage) Low Height: 5.92″ (150mm)
- 30-Ton (1st Stage) High Height: 8.82″ (224mm)
- 30-Ton (1st Stage) Ram Lift: 2.91″ (74mm)
- 15-Ton (2nd Stage) Low Height: 5.92″ (150mm)
- 15-Ton (2nd Stage) High Height: 11.5″ (292mm)
- 15-Ton (2nd Stage) Ram Lift: 5.59″ (142mm)
- Working Air Pressure: 116 to 145PSI (0.8 to 1.0 Mpa)
- Net Weight: 66 lbs. (30kg)
- Shipping Weight: 77 lbs. (35kg)
- Warranty: (3) Year Limited
