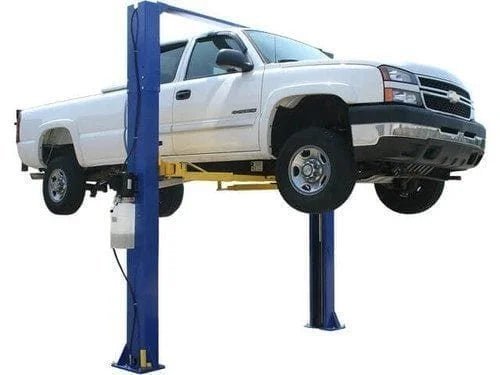

Atlas 9KOHX 9,000 lb Overhead 2-Post Lift
$675.00
Sale price
$675.00
Regular price
Shipping calculated at checkout.
The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.
- 9,000 lb. Capacity
- Overhead, Open-Floor design
- Overall Height: 138″ (11′ 6″) or 142″ (11′ 10″)
- Asymmetric/Symmetric Arms
- Automatic Arm Restraints
- Dual-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System
- Free 8 Piece Truck Adapter Set
- Free set of Sliding Arm Adapters
- Mounting Hardware Included
- Shipping Weight: 1,450 lbs.
- 2 yr Structural - 1 yr Hydraulic Warranty
| Atlas® 9KOHX Specifications | ||
| Capacity | 9,000 LB. | |
| Overall Height | 138″ (11' 6″) or 142" (11' 10") | |
| Overall Floor Width | 134 1/2″ (11' 2 1/2″) | |
| Outside Column to Outside Column | 124 7/8″ (10' 4 7/8″) | |
| Maximum Lift Height (Without Adapters) | 74 1/2″ | |
| Maximum Lift Height (With Adapters) | 81″ | |
| Minimum Arm Height | 4″ | |
| Inside Column | 110" (9' 2") | |
| Drive Thru | 100" (8' 4") Symmetric/ 90 1/2″ (7' 6 1/2") Asymmetric | |
| Column Size | 7 1/4″ x 11″ | |
| Column Thickness of Steel | 5mm | |
| Base Of Lift | 14 1/4″ x 18″ | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 | |
| Shipping Weight | 1,450 LBS. | |
| Adapter Heights | 4 Each 1.5", 5" | |
| Arm Hole/Adapter Peg Size | 1.5" | |
