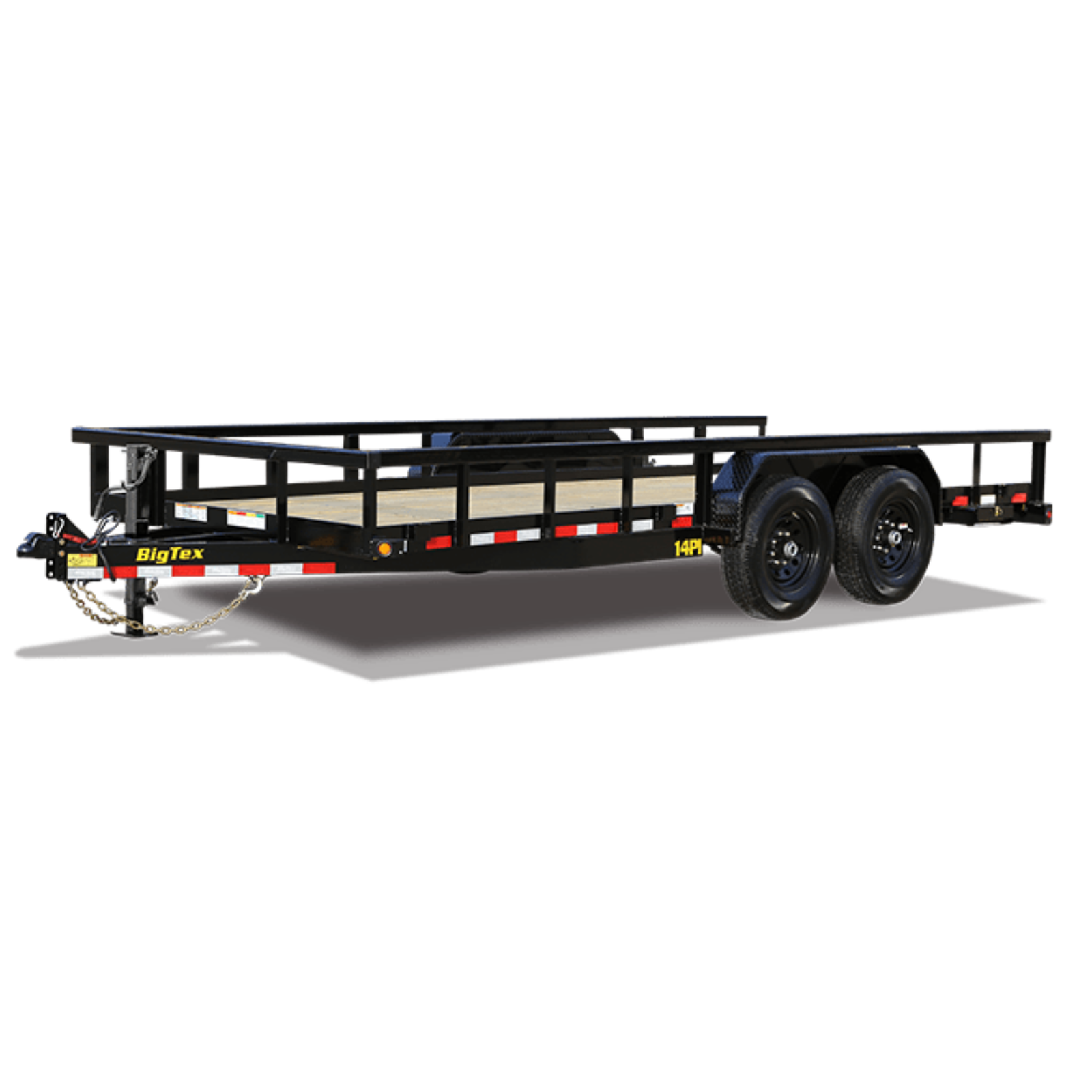

Big Tex Heavy Duty Tandem Axle Pipe Top Utility Trailer | 14PI

Facing down heavy-duty, demanding, and challenging loads? Then it’s time to call in the big guns with the 14PI Heavy Duty Tandem Axle Pipe Top Utility Trailer—a heavy-duty pipe-top equipment trailer that’s specifically designed and built to take on the toughest and heaviest loads. Coming standard with an adjustable forged coupler and LED lights, it’s a rugged and durable utility trailer that has the muscle for heavy-duty hauling and transport. And it features a treated floor for a professional-grade appearance that also delivers the brawn.

STANDARD FEATURE

AVAILABLE OPTIONS

Axles

2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Forward Self-Adjusting Electric Brakes on All Hubs

Suspension

Multi-Leaf Spring w/ Equalizer

Coupler

Adjustable 2-5/16” Demco EZ Latch

Adjustable Pintle in Channel

Safety Chains

1/4″ Grade 70 w/ Safety Latch Hook (2 ea)

Jack

8,000# Drop-Leg Jack (Side Wind)

Frame

5″ x 3″ x 5/16″ Angle

Cross-Members

3″ Channel on 16″ Centers

Floor

Treated Pine Floor

Blackwood Pro Rubber Infused Lumber Floor (per linear foot)1/8” Diamond Plate Steel Floor (Per Square Foot)

Fenders

9″ x 72″ 14 Ga. Diamond Plate Double Broke

Ramps

4′ Slide in Channel Ramps

4′ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist5’ Stand Up Ramps

5’ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist

Stake Pockets

Outside Frame Stake Pockets

Additional Stake Pockets (Each)

Trailer Plug

7-Way RV

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Grommet-Mounted Lifetime L.E.D. Lighting

Tires

ST235/80 R-16 Load Range E

Tire Upgrade (ST235/80 R-16 LR-G)

Bolt Pattern

8-Bolt

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire (ST235/80 R-15 LR-E)

Spare Tire & Wheel (ST235/80 R-16 LR-E)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Tie-Downs

5/8″ D-Ring

Sides

15″ Tall Open sides with 3″x 2”x 3/16″ Angle uprights and 3″ x 3″ Square Tubing Top Rail

2′ High Sides (Open, Total Height with Top Rail)

3’ High Sides (Open, total height with Top Rail)

4’ High Sides (Open, total height with Top Rail)

Car Hauler Style (No Side Rails)

Enclose Sides w/ Expanded Metal (Per Square Foot)

Enclose Sides w/ Sheet Metal (Per Square Foot)

Storage

Bolt-On Landscape Box (24″ x 24″ x 87″)

MODEL

14PI-16

PULL TYPE

Bumperpull

GVWR

14000 lbs

GAWR (EA. AXLE)

7000 lbs

EMPTY WEIGHT

2740 lbs

CARGO CAPACITY

11260 lbs

BED LENGTH

16′

BED WIDTH

83″

A

193-1/2″

B

115″

C

78-1/2″

TONGUE LENGTH

42-3/4″

14PI-18

2890 lbs

11110 lbs

18′

217-1/2″

127”

90-1/2″

14PI-20

3040 lbs

10960 lbs

20′

240″

138″

102″
