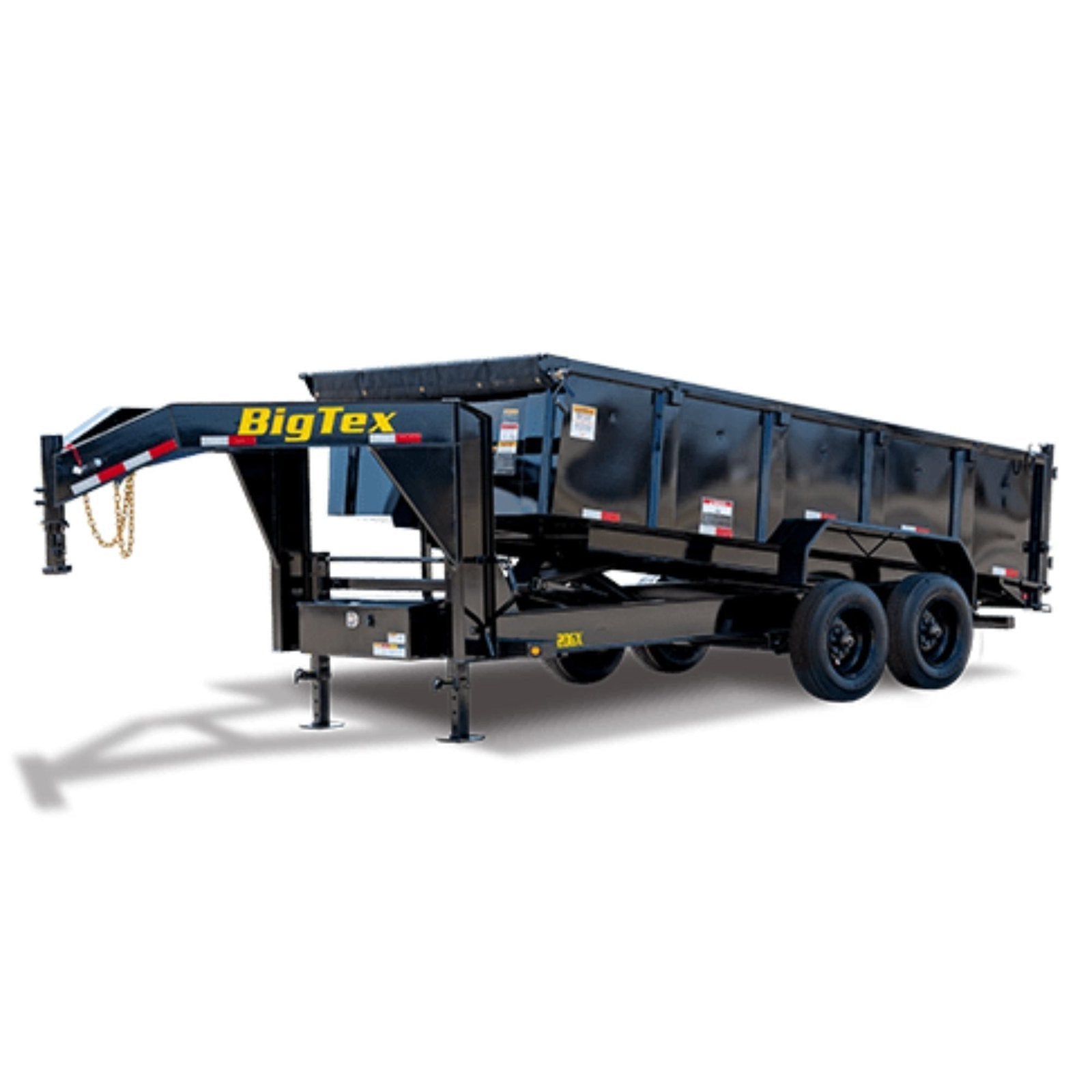

Big Tex Mega Duty Tandem Axle Gooseneck Dump Trailer | 20GX-16
$1,095.92
Sale price
$1,095.92
Regular price
Skip to product information
Big Tex Mega Duty Tandem Axle Gooseneck Dump Trailer | 20GX-16
$1,095.92
Sale price
$1,095.92
Regular price
Shipping calculated at checkout.
Need a trailer with muscle? Built to take on heavy-duty, hefty loads, the 20GX Mega Duty Tandem Axle Gooseneck Dump has the power you need. Tough enough for the most demanding industries and environments, this trailer is packing 10,000 lbs. Torsion Axles with Super Single Wheels for big hauls. And you won’t have to worry about space because the 20GX has a rugged dump box with high sides that add cubic capacity for larger loads. Best of all, its user-friendly low-profile design and optional slide-in ramp package make loading and unloading heavy equipment a quick and easy job for anyone. Next time the going gets tough, put some muscle into it.
Standard Feature
Available Options
Axles
2 – 10,000# cambered axles with Oil Bath and Valcrum Caps
Brakes
Forward Self-Adjusting Electric Brakes on Both Axles
Suspension
Torsion Axles
Tongue
10″ I-Beam
Coupler
Round Adjustable Pin 2-5/16” Gooseneck Coupler
Safety Chains
3/8″ Grade 70 w/ Safety Latch Hook (2 ea)
Jack
Dual 12,000# Drop-Leg Jack (Side Wind)
Dual 2-Speed Landing Gear
Frame
Cross-Members
3″ Channel on 16″ Centers
Floor
7 Gauge Smooth Steel
Fenders
9″ x 72″ 14 Ga. Diamond Plate Double Broke
Ramps
Not Included
6.5’ Slide In Ramp Package
Stake Pockets
Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug
7-Way RV
Lights
Recessed, Grommet-Mounted L.E.D. Lighting
Wiring
Sealed, Modular Cold-Weather Wiring Harness
Tires
ST215/75 R-17.5 Load Range H Radial Tires
Bolt Pattern
8-Lug
Wheels
Black Mod Steel
Spare Mount
Side Spare Tire Mount
Spare Tire
Spare Tire & Wheel (ST215/75 R-17.5 LR-H)
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Tie-Downs
(4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Battery
12V Deep Cycle
Charger
5A 110V on Board Battery Charger
Deck On Neck
Removable Deck on the Neck- Bolt On (8′ W x 6′ L)
Gate
Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks
Along sides and rear for Cargo Control
Power
Power Up/Power Down & Gravity Down Hydraulic Pump
5 Watt Solar Charger
Wireless Remote
Ram
Self-Contained Scissor
Sides
36″ Tall (10 Ga) with formed Channel Supports
Stabilizers
Rear Stabilizer Stands
Steps
Convenient Side-Step to Access Top Rail
Storage
Lockable Pump and Battery Box mounted between front Jacks
Tarp
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail
3″x 2″ Rectangular Tubing
Steps & Handles
Model
20GX-16
Pull Type
Gooseneck
GVWR
22000 lbs
GAWR (Ea. Axle)
10000 lbs
Empty Weight
6550 lbs
Cargo Capacity
15450 lbs
Bed Length
16′
Bed Width
83″
A
192″
B
115-1/4″
C
76-3/4″
Tongue Length
92
