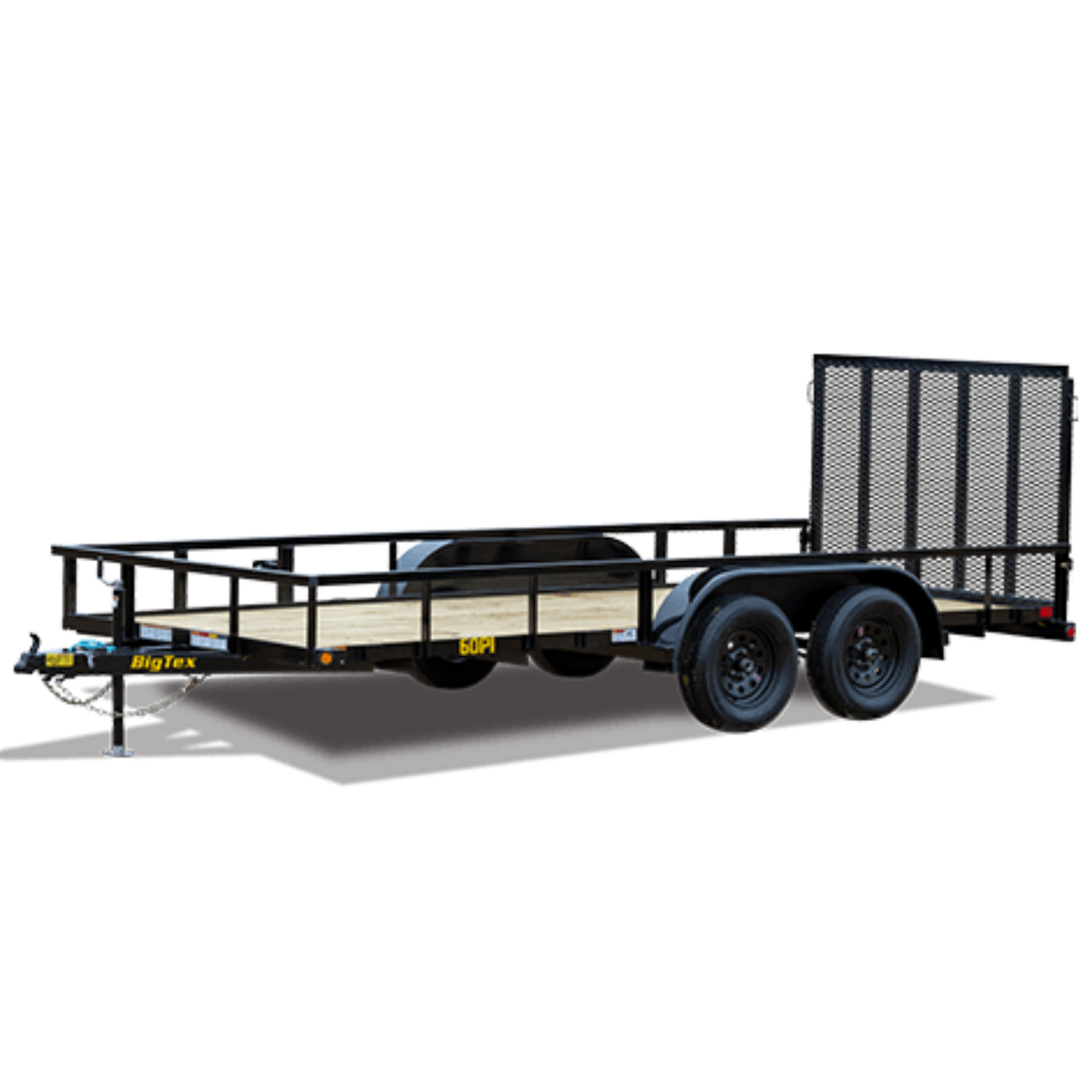

Big Tex Tandem Axle Pipe Top Utility Trailer | 60PI

Ready to haul light-duty equipment wherever a job needs doing, the durable and reliable 60PI Tandem Axle Pipe Top Utility Trailer is designed to make equipment transportation easy. It’s built to tackle the toughest jobs with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength. In other words, it has the brawn to safely and securely get small tractors and side-by-sides to where they need to go. Plus, optional slide-in ramps make loading and unloading even easier, helping you focus on the task at hand.

STANDARD FEATURE

AVAILABLE OPTIONS

Axles

2 – 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Electric Brake on Front Axle

Electric Brakes on 2nd Axle

Suspension

Multi-Leaf Spring w/ Equalizer

Coupler

2″ A-Frame

2″ Forged Coupler

2-5/16” Forged Coupler

2-5/16” Stamped Coupler

Safety Chains

1/4″ Grd. 30 w/ Safety Latch Hook (2 ea)

Jack

2,000# Top Wind, Set-Back Jack with Removable Sand Foot

2,000# Fold-Up Jack

Frame

3″ x 2″ x 3/16″ Angle

Cross-Members

3” x 2” x 3/16” Angle

Floor

Treated Pine Floor

Blackwood Pro Rubber Infused Lumber Floor (per linear foot)1/8” Diamond Plate Steel Floor (Per Square Foot)

Fenders

9″ x 72″ Rolled Formed w/ Back

Ramps

4′ Slide-In Angle Ramps

4′ Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist

4′ Tall Rear Ramp Gate w/ Coil Spring Assist

5′ Tall Rear Ramp Gate w/ Coil Spring Assist

Stake Pockets

Additional Stake Pockets (Each)

Trailer Plug

7-Way RV

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Grommet-Mounted Lifetime L.E.D. Lighting

Tires

ST205/75 R-15 Load Range C

Bolt Pattern

5 Bolt

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire (ST205/75R-15 LR-C)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Tie-Downs

(4) Tie Down Loops Inside Bed

Additional Tie Loops

Sides

17″ Tall Open sides with 2” Angle uprights and 2″ x 2″ Square Tubing Top Rail

2′ High Sides (Open, Total Height with Top Rail)

3’ High Sides (Open, total height with Top Rail)

4’ High Sides (Open, total height with Top Rail)

Car Hauler Style (No Side Rails)

Enclose Sides w/ Expanded Metal (Per Square Foot)

Enclose Sides w/ Sheet Metal (Per Square Foot)

MODEL

60PI-12

PULL TYPE

Bumperpull

GVWR

6000 lbs

GAWR (EA. AXLE)

3500 lbs

EMPTY WEIGHT

1265 lbs

CARGO CAPACITY

4735 lbs

BED LENGTH

12′

BED WIDTH

77″

A

145-1/2”

B

85″

C

60-1/2″

TONGUE LENGTH

37″

60PI-14

1400 lbs

4600 lbs

14′

103″

169-1/2”

103”

72-1/2”

60PI-16

1535 lbs

4465 lbs

16′

193-1/2″

115″

78-1/2″
