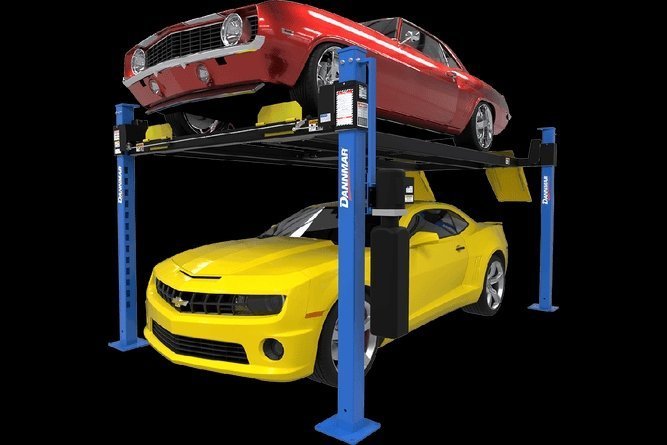

Dannmar D4-9 Package 9,000-Lbs. Capacity Four-Post Lift

Dannmar’s D4-9 four-post lift delivers versatile productivity while allowing you to easily store project cars, classics, daily drivers, or even heavy pickup trucks. Dannmar’s D4-9 also comes standard with the accessories that most other car lift companies charge extra for. Mobile caster kits, drip trays, aluminum ramps, and more are all included. But a BIG plus of this four-post lift series is that you can store a vehicle raised above; and while having an open working space below. Dannmar’s D4-9 serves double-duty.

Features

The D4-9 is designed to be fastened to the floor or free-standing.

Comes standard with a mobile caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire.

Boxed-steel columns are made from structural 4.75” x 4.75″ welded steel tubing.

Columns feature 12” x 12” baseplates 5/8” thick.

Manual dead-bolt locks are reliable and safe and are machined directly into the boxed-steel columns.

3/4″ thick steel safety locks are spring loaded for automatic and solid engagement.

13 positive locking positions are spaced every 4 inches.

Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure.

Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment.

Welded-steel runways feature utility rail for jack tray and drip trays and other accessories.

Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall.

Oversize baseplates and pull-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing.

Low-profile runways are only 5″ high to accommodate low ride-height vehicles.

Hardened steel safety lock linkages use 3/8” molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation.

Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance.

5/8″ thick top caps.

Pull out tire stops on both ends of the lift that allows drive through capability.

Stainless steel lifting cables are rated to handle over 14,000 lbs. each.

Pre-assembled cables simplifies installation.

36″ aluminum approach ramps are gusseted to eliminate flex and bending.

3/4″ runway bolts provide positive attachment with increased safety factor.

Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles.

Lifting Capacity

9,000 lbs. (4,082 kg)

A – Min. Runway Height

5” (127 mm)

B – Max. Rise

70” (1,778 mm)

C – Max. Lifting Height

75” (1,905 mm)

D – Height of Columns

89” (2,261 mm)

E – Drive-Thru Clearance

86” (2,184 mm)

F – Overall Width

114.5” (2,908 mm)

G – Width Between Columns

98” (2,489 mm)

H – Overall Length

203” (5,156 mm)

I – Outside Length

176.5” (4,483 mm)

J – Width Between Runways

37.5” (953 mm)

K – Runway Centerline

53.75” (1,365 mm)

L – Outside Edge of Runways

72.5” (1,842 mm)

M – Runway Width

18.75” (476 mm)

N – Length of Runways

165.5” (4,204 mm)

Min. Wheelbase @ Rated Capacity

115” (2,921 mm)

Min. Wheelbase @ 75% Capacity

100” (2,540 mm)

Min. Wheelbase @ 50% Capacity

85” (2,159 mm)

Min. Wheelbase @ 25% Capacity

Locking Positions

13 (spaced every 4” / 102 mm)

Time to Full Rise

60 seconds

Motor

110VAC, 50-60HZ, 1PH, 20A or 208-230VAC, 50-60HZ, 1PH, 25A

Shipping Weight

1,188 lbs. (538.9 kgs)

Shipping Dimensions

166″ x 22″ x 41″ (4,216 mm x 558 mm x 1,041 mm)
