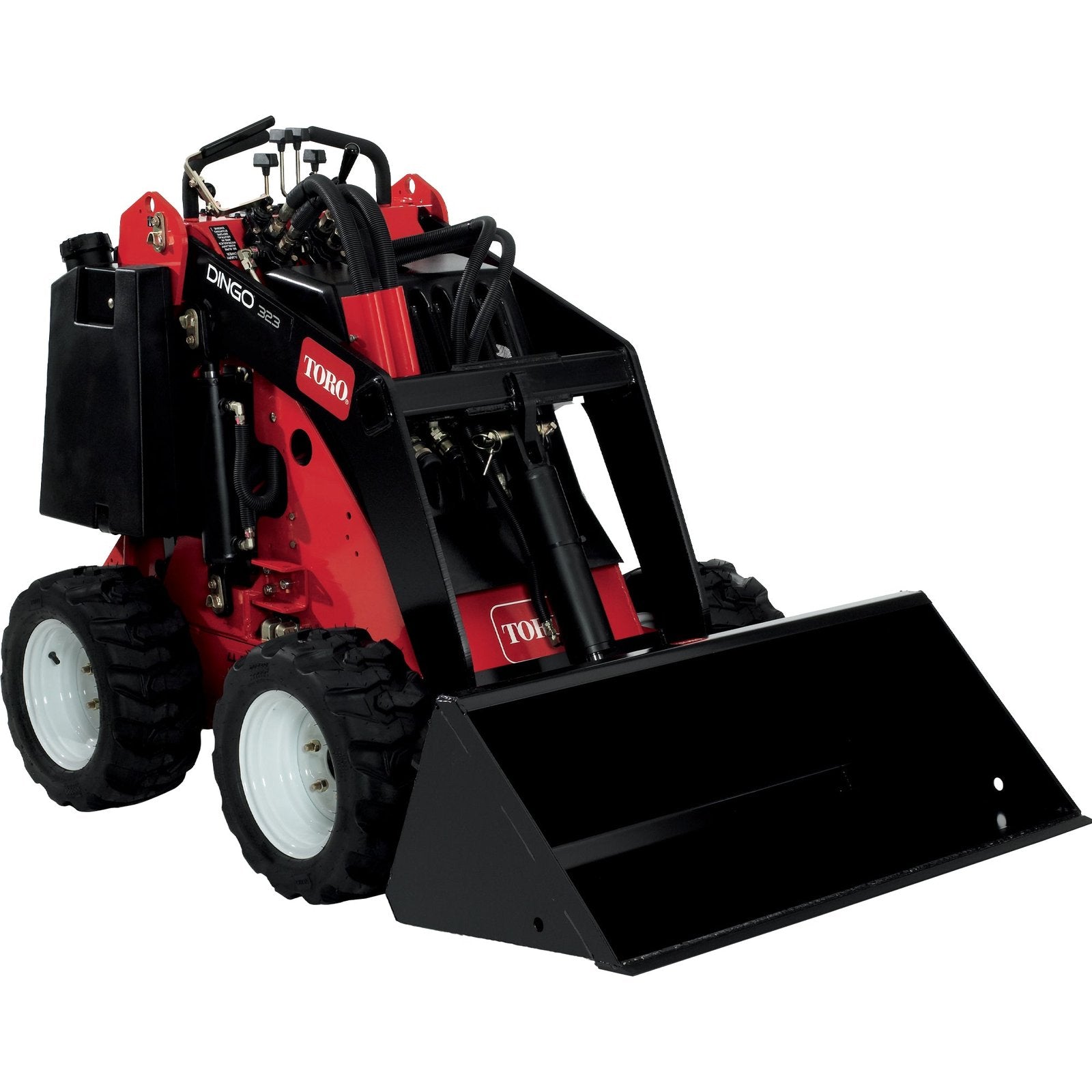

Dingo® 323 Mini Skid Steer

Equipped with the Toro designed 4-Paw®, independent 4-wheel drive system, the Dingo® 323 at 3000 psi (206.7 bar) offers incredible power and durability. Delivering 10.8 gpm (40.9 lpm) of hydraulic power with this 23 hp (17.2 kw) Kohler engine will guarantee jobsite productivity.

Air Filter: Two-stage, heavy-duty, remote

Cooling System: Air Cooled

Dump Angle: 34 deg

Dump Height: 47 in. / 119.3 cm

Engine Displacement: 674 cc (41 cu. in.)

Engine Horsepower: 22.5 hp

Engine Make: Kohler

Engine Model: Command Series CH23

Fuel Tank: 11.2 gal. / 42.4 L

Fuel Type: Gasoline

Ground Clearance: 5.8 in. / 14.7 cm

Ground Speed - Forward: Up to 3.7 mph / 6.1 km/h

Ground Speed - Reverse: Up to 3.7 mph / 6.1 km/h

Height: 48.7 in. / 123.7 cm

Hinge Pin Height: 66 in. / 167.6 cm

Hydraulic High Flow: 10.8 GPM

Hydraulic High-Flow Hydraulic Circuit: 10.8 GPM

Hydraulic Low Flow: 4 GPM

Hydraulic Pressure: 3,250 PSI

Length: 62 in. / 157.5 cm

Length - With Bucket: 82.2 in. / 208.8 cm

Max Operating Height: 91.2 in. / 231.6 cm

Oil Capacity: 2 qt / 1.9 L

Rated Operating Capacity*: 515 lbs / 233.6 kg

Reach - Fully Raised: 28 in. / 71.1 cm

Reservoir Capacity: 17 gal. / 6.4 L

Tip Capacity: 1,030 lbs / 467 kg

Track Length: 96.6 in. / 245.3 cm

Track Width: 5.9 in. / 14.9 cm

Weight: 1,567 lbs / 711 kg

Wheelbase: 28 in. / 71.1 cm

Width - With Narrow Tires: 35 in. / 88.9 cm

Width - With Standard Tires: 40.5 in. / 102.8 cm
