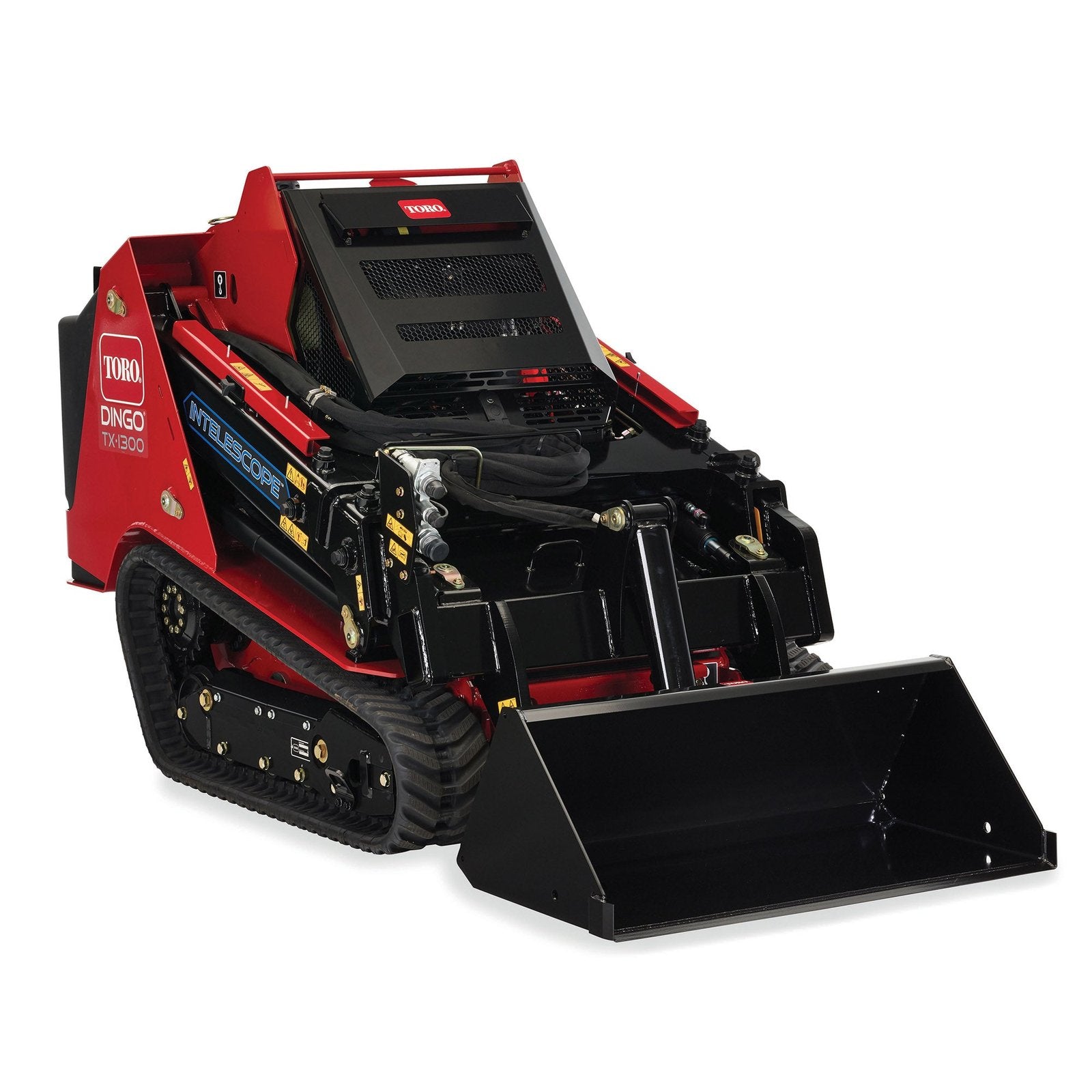

Dingo® TX 1300 Track Loader

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26" of reach, and the telescoped hinge-pin height of 109" means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.

Air Filter: Remote dual element

Cooling System: Combo Downflow Radiator and Oil Cooler, Independent Fuel

Dump Angle: 38 deg

Dump Height - Extended: 90.7 in. / 230.3 cm

Dump Height - Retracted: 70.9 in. / 180.0 cm

Engine Horsepower: 37 hp (27 kW)

Engine Make: Yanmar

Engine Model: 3TNV88C

Fuel Tank: 11 gal. / 41.6 L

Fuel Type: Diesel

Ground Clearance: 5.9 in. / 14.9 cm

Ground Pressure: 5.5 psi

Ground Speed - Forward: Up to 4.7 mph / 7.6 km/h

Ground Speed - Reverse: Up to 4.7 mph / 7.6 km/h

Height: 56.5 in. / 143.5 cm

Height - With Bucket: 56.5 in. / 143.5 cm

Hinge Pin Height - Extended: 109.2 in. / 277.3 cm

Hinge Pin Height - Retracted: 89.4 in. / 227.0 cm

Hydraulic Flow - Auxiliary: 14.3 GPM

Hydraulic Flow - Traction: 13.4 GPM

Hydraulic Pressure: 3,200 psi

Length: 84.9 in. / 215.6 cm

Length - With Bucket: 103.1 in. / 261.8 cm

Loader Arms: Radial

Max Operating Height: 133 in. / 337.8 cm

Oil Capacity: 5 qt / 4.7 L

Rated Operating Capacity - Extended*: 618 lbs / 280.3 kg

Rated Operating Capacity - Retracted*: 1,300 lbs / 589.6 kg

Reach - Fully Raised: 26.7 in. / 67.8 cm

Reservoir Capacity: 9.2 gal. / 34.8 L

Tip Capacity: 3,714 lbs / 1,685 kg

Track Length: 126.6 in. / 321.5 cm

Track Width: 9.1 in. / 23.1 cm

Tracks: MERT track with "TF" style tread

Traction: Dual Hydrostatic Pump

Weight: 3,858 lbs / 1,750 kg

Wheelbase: 39 in. / 99.0 cm

Width: 46 in. / 116.8 cm

Width - With Bucket: 46 in. / 116.8 cm
