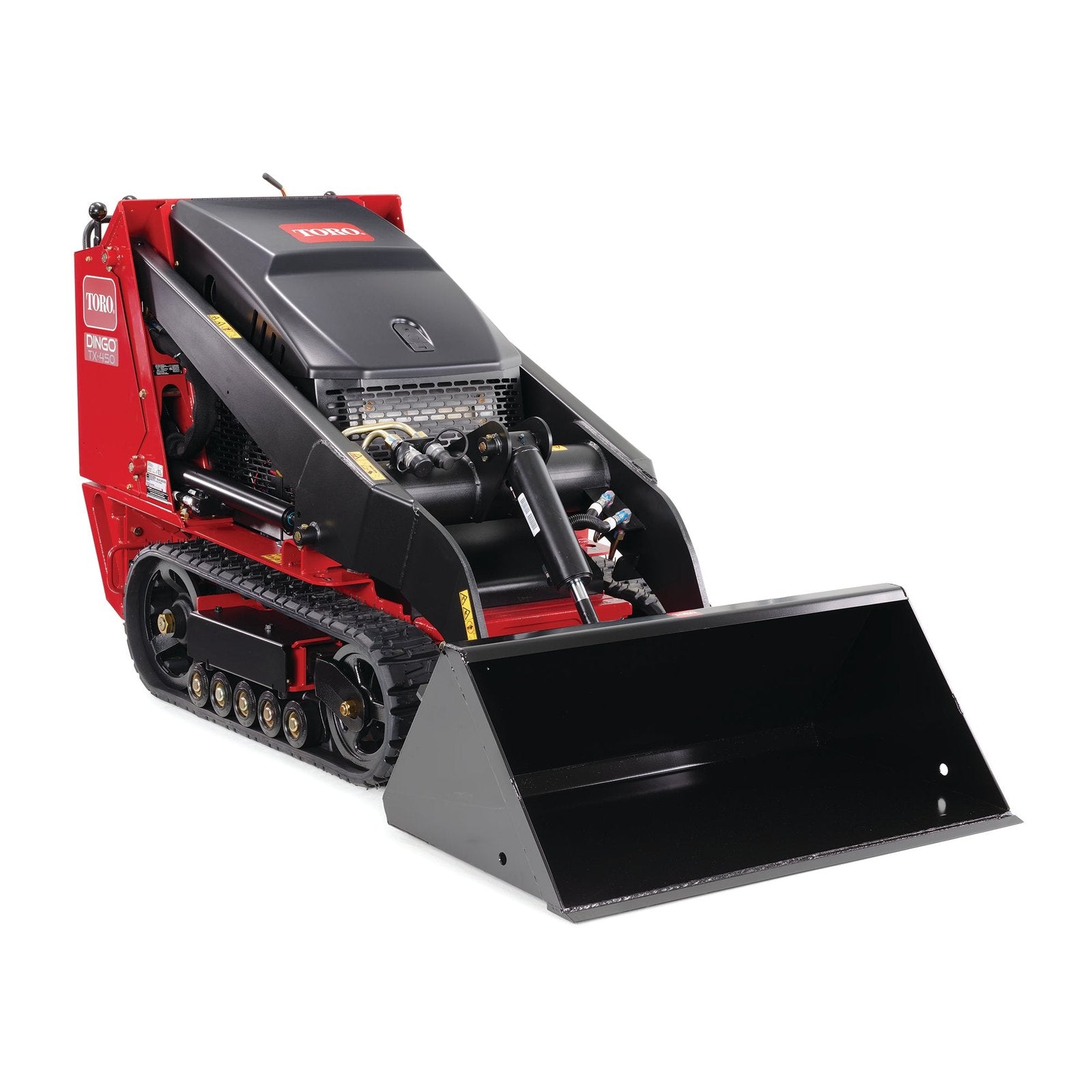

Dingo® TX 450 Track Loader

The gas-powered Dingo® TX 450 offers cost-effective versatility to tackle outdoor jobs quickly and efficiently. Whether a seasoned landscaping pro or a first-time user, the only walk-behind loader in its class makes it easy to auger, trench, lift and load in tight spaces.

Air Filter: Two-stage, heavy-duty, remote

Cooling System: Air Cooled

Dump Angle: 38 deg

Dump Height: 46.1 in. / 117.0 cm

Engine Displacement: 725 cc (44 cu. in.)

Engine Horsepower: 25 hp (18.6 kW) @ 3,600 rpm

Engine Make: Kohler

Engine Model: Command Pro Series CH740

Fuel Tank: 6 gal. / 22.7 L

Fuel Type: Gasoline

Ground Clearance: 4.6 in. / 11.56 cm

Ground Pressure: 5.1 psi

Ground Speed - Forward: Up to 4.5 mph / 7.2 kph

Ground Speed - Reverse: Up to 2.0 mph / 3.2 kph

Height: 46.1 in. / 117.0 cm

Height - With Bucket: 46.1 in. / 117.0 cm

Hinge Pin Height: 65.8 in. / 167.1 cm

Hydraulic Flow - Auxiliary: 11.4 GPM

Hydraulic Flow - Traction: 16.9 GPM

Hydraulic Pressure: 3,000 psi

Length: 70.7 in. / 179.5 cm

Length - With Bucket: 92 in. / 233.6 cm

Loader Arms: Radial

Max Operating Height: 90.1 in. / 228.8 cm

Oil Capacity: 2 qt / 1.9 L

Rated Operating Capacity*: 535 lbs / 242.67 kg

Reach - Fully Raised: 21.8 in. / 55.3 cm

Reservoir Capacity: 10 gal. / 37.8 L

Tip Capacity: 1,530 lbs / 694 kg

Track Length: 96.6 in. / 245.3 cm

Track Width: 5.9 in. / 14.9 cm

Tracks: Sprocket-drive, 10 road wheels per side

Traction: Dual Hydrostatic Pump

Weight: 1,882 lbs / 854 kg

Wheelbase: 31.2 in. / 79.2 cm

Width: 33.7 in. / 85.5 cm

Width - With Bucket: 33.7 in. / 85.5 cm
