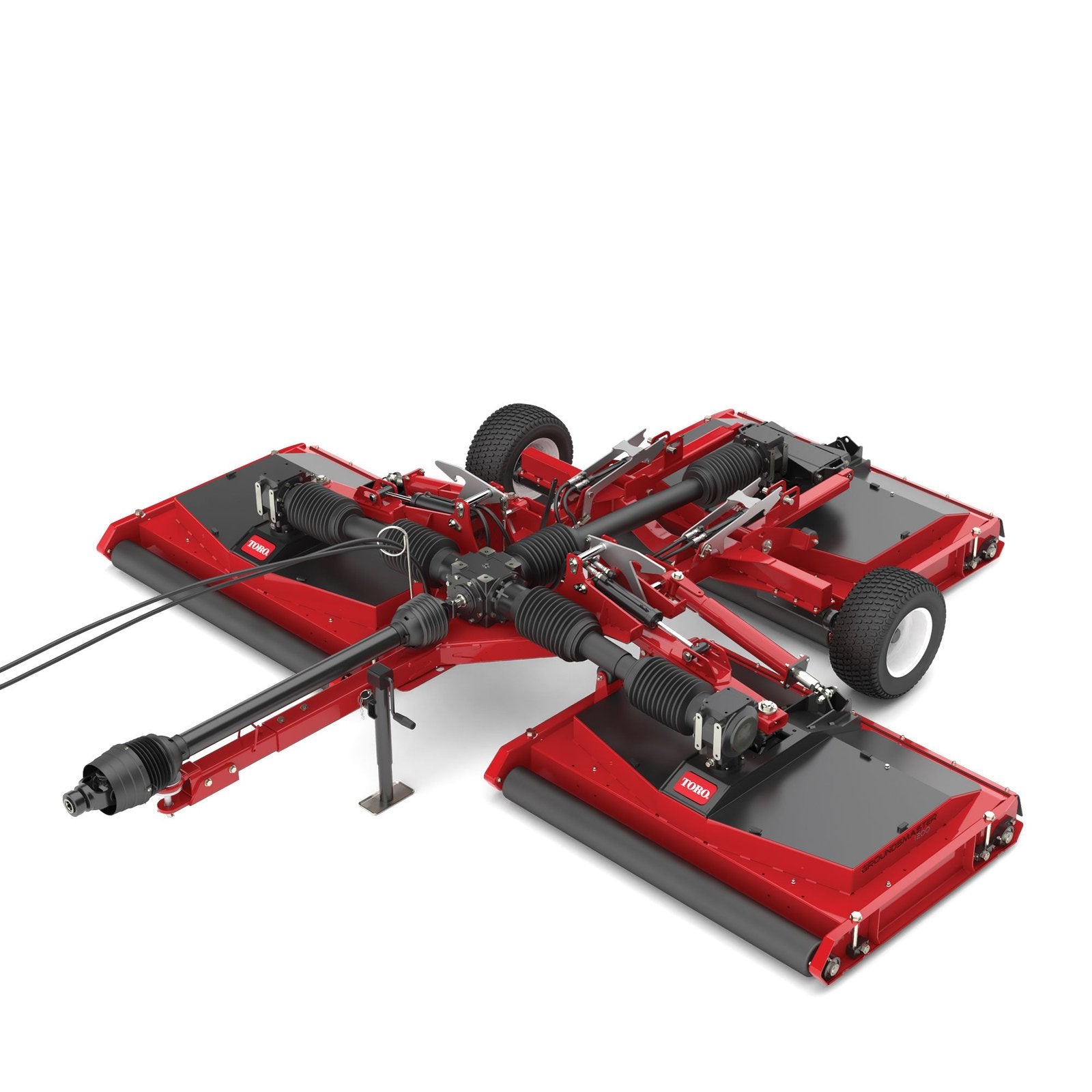

Groundsmaster® 1200

The Only Pull-Behind Worthy of Being a Groundsmaster.The Groundsmaster 1200 delivers an unparalleled combination of productivity, durability and superior cut. It features a 12-foot (3.7 meters) width of cut and can mow up to 8.73 acres/h (3.53 hectares/h) at 6 mph (9.7 km/h) per hour. Remaining true to Groundsmaster’s unmatched reputation of durability, the 1200 was designed for years of reliable mowing. Its spindles are the same as Toro’s large rotaries and capable of withstanding the roughest conditions. The bi-directional impact resistant system provides additional protection to the wing decks. Don’t let its productivity and robust design fool you; the Groundsmaster 1200’s independently articulating decks hug undulations for an exceptional finish. Combine this with the dual roller design, the Groundsmaster 1200 delivers a high-quality cut and rich turf striping in most conditions.Productivity, durability and exceptional cut. That’s what makes the 1200 the only pull behind worthy of being a Groundsmaster.

Blade Style/Type: Rotary

Blade Type (Description): Standard Blades: 19" (48.3 cm) long, 2.5" (6.4 cm) wide, 0.25" (6.4 mm) thick

Cab Unit: N/A

Clip Frequency/Backlapping: 15,000 ± 300 ft/min (4572 ± 91.4 m/min) at 540 PTO RPM

Cutting Unit Type/Configuration: Overall: 144" (365 cm), Individual deck: 54" (137 cm), Overlap: 9" (23 cm)

Deck Construction: 10-gauge high strength steel constructed deck with 7-gauge bolt-in reinforcements. 7-gauge welded steel side skids with 5" (12.7 cm) diameter steel rollers.

Deck Wing Protection: Bi-directional, impact absorption device on each wing deck

Drivetrain: PTO

Ground Following: 9 anti-scalp cups, one on each blade, two anti-scalp/striping rollers on each deck. On each deck: two 5" (12.7 cm) diameter roller.

Height: Transport height: 75.75" (192.4 cm)

Height of Cut Range: 0.5" - 4.0" (1.3 cm - 10.2 cm) infinitely variable

Mowing Rate (Productivity): Up to 8.7 acres/hr @ 6 mph

Number of Blades: 9

Optional Accessories: Roller scraper kit, standard blade kit, high-lift blade kit, safety chain kit, Atomic blade kit, tow chain kit, fender kit, SMV Kit, tail light kit, blade cover kit, clevis hitch, pintle eye hitch

Overall Width: 149.8" (380.5 cm) with decks down

Power Train (Engine Description): Minimum 35 HP (26.1 kW) at the PTO, 540 RPM

Product Length: Transport length: 145.5" (369.6 cm) (hitch fully extended)

Spindle Assembly: 1.25" (3.17 cm) diameter spindle shafts, 9" (22.9 cm) diameter conical ductile iron housing and two greaseable tapered roller bearings. Driven counter-clockwise when viewed from the top.

Tires - Front: 20" x 10" - 10", 6-ply, Tubeless Multi-Trac

Traction Drive: No Drive

Traction Drive (System): PTO drive-shaft drives 4-way gearbox, secondary drive-shafts drive indiv. deck gearboxes

Transport Width: 86" (218.4 cm) at 0.5" (1.27 cm) HOC

Weight: 2,984 lbs. (1,354 kg)

Width of Cut: 144" (365 cm)
