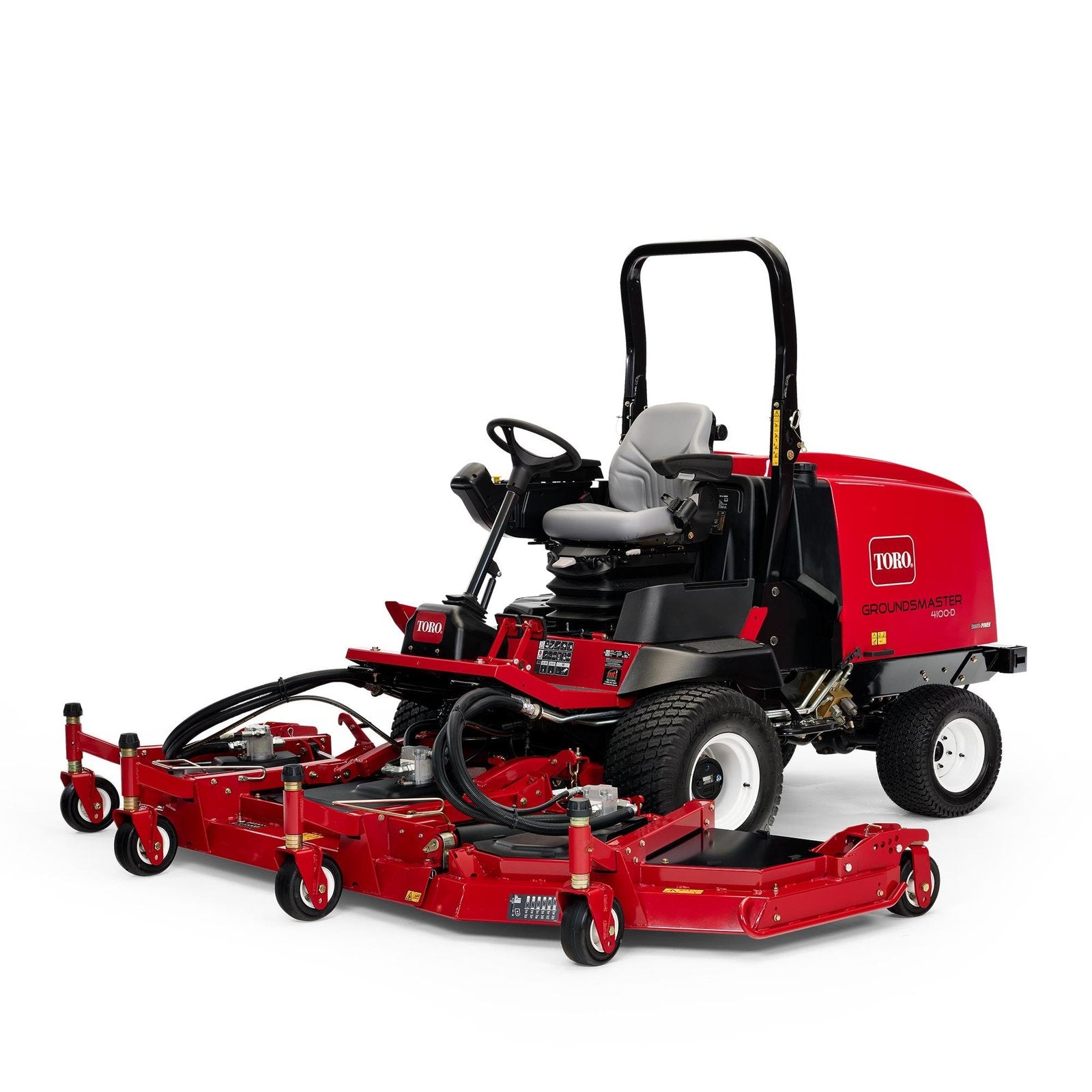

The Groundsmaster® 4100-D wide area rotary mower features an all out-front mower deck for superior operator visibility and increased productivity. This Tier 4 compliant model offers a powerful and efficient Yanmar® turbo-diesel, 55 hp (41 kW) engine and SmartPower™ technology that coupled with the HybridDrive™ cutting deck system delivers optimal power to the cutting blades – efficiently cutting grass even in the toughest conditions. The Groundsmaster 4100-D includes a 10.3' (3.15 m) cutting width, full-time bi-directional four-wheel drive and a SmartCool™ auto-reversing fan that minimizes radiator screen clogging. Operators can enjoy mowing productivity with ROPS safety in the open-air 4100-D.
Air Filter: Dry, replaceable primary and safety elements.
Armrests: Standard
Battery: 12V
Blade Style/Type: Rotary
Blade Type (Description): Combination Blades: 19" (48.3 cm) long, 2.5" (6.4 cm) wide, 0.25" (0.64 cm) thick.
Cab Unit: N/A
Controls: Tilt steering, ignition switch, throttle switch, foot-operated traction pedal, lockable individual brake pedals, parking brake lock, mow/transport speed selector switch, 3 two position switches for individual deck lift/lower, counterbalance adjustment, tow valves, cup holder, toolbox, radio holder, fan switch and 12-volt power outlet.
Cooling System Description: 8.75 gallons (33.1 liters) capacity with 10 micron remote spin-on filter. Single pass cooler, 6.3 fins per inch, Smart Cool™ variable speed radiator cooling fan with automatic (based on coolant and oil temps) and manual reversing capabilities. Rear-mount, cross-flow radiator with 6.3 fins per inch, 9 quart (8.5 liters) capacity.
Cruise Control: Cruise control standard.
Cup Holder: Standard
Cutting Unit Accessories: Mulching Kit, 8 Inch Foam Filled Caster Wheel, Bumper Skid (White)
Cutting Unit Lift/Lower: Two position switches for individual deck lift/lower.
Cutting Unit Type/Configuration: Overall: 124" (315 cm), Center deck section: 54" (137.1 cm), Two 37" (93 cm) width of cut wings. 89" (226 cm) width of cut with one wing up.
Deck Caster Wheels: 8 x 3.50-4, 4-ply, smooth, pneumatic, sealed precision ball bearings.
Deck Construction: Welded 0.100" (2.5 mm) high-strength steel with steel 7 and 10-gauge channel and plate reinforcements.
Deck Wing Protection: Impact absorption device on each wing deck.
Drivetrain: Diesel
Electrical System: 12-volt, 690 cold cranking amps battery, 80 amp alternator. Overload protection with automotive type fuses.
Engine Cooling: Liquid Cooled
Fuel / Power Source: Diesel / Biodiesel
Fuel Capacity: 21 U.S. gal. (79.5 L)
Gauges/Instrumentation: InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temp, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage.
Ground Clearance: 6.5" (16.5 cm)
Ground Following: 6" anti-scalp cups on each blade, adjustable skids, 3 anti-scalp rollers on front deck and 1 on each wing.
Ground Speed - Forward: 0 - 16.2 mph (0 - 26.1 km/h)
Ground Speed - Reverse: 0 - 8.1 mph (0 - 13 km/h)
Height: 85.3" (216.7 cm) with ROPS up
93.3" (237 cm) with cab
Height of Cut Range: 1" - 5" (25 mm - 127 mm) in 0.5" (13 mm) increments.
Hydraulic Fluid Capacity: 8.75 U.S. (33.1 L)
Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid
Implement Drive: Direct mounted hydraulic motor into spindle. Remaining spindle(s) driven by individual B section Kevlar belt. Quick-release belt covers.
Interlocks: Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat while moving or deck is engaged, traction and/or deck stops, info center alarms and gives message. Mowing only permitted in low range. Traction not allowed if parking brake engaged and pedal moved out of neutral, info center alarms and gives message. Deck transport latches.
Lighting: Optional
Main Frame/Chassis: All welded formed-steel frame with integral tie-down anchors.
Max Slope Angle: Refer to operator's manual.
Mowing Rate (Productivity): Up to 10.4 acres/hr (4.2 hectacres/hr)
Mowing Speed: 0 - 8.3 mph (0 - 13.4 km/h)
Number of Blades: 7
Oil Capacity: 8 U.S. qt. (7.6 L)
Optional Accessories: Road Light Kit (includes LED headlights, brake lights, tail lights, amber turn signals, flashers and slow moving vehicle sign), LED Work Lights, Additional Turn Signals, Sunshade, Beacon, Slope Sensor, Two-Post ROPS Extension System, Operator Golf Ball Guard, Horn Kit, 4WD Flow Divider Kit
Overall Width: 127" (323 cm) with decks down
Parking/Service Brakes: Mechanically actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control left and right wheel. Lock pedals together & latch to engage parking brake.
Power Steering: Yes
Power Train (Engine Description): Yanmar® 4-cylinder, liquid-cooled, turbo-charged diesel. 127 cu. in. (2.1 liter) displacement. Engine rated at 55 hp (44 kW) net and 125 ft.-lbs. (169 Nm) torque at 2,000 rpm. EPA Tier IV Final and Stage V compliant.
Product Length: 144" (366 cm) with decks down
Safety/Operator Safety: Two-post foldable ROPS, seat belt.
Seat: 4-way adjustable seat, right armrest travels with seat and suspension.
Spindle Assembly: 1.25" (3.17 cm) diameter spindle shafts, 9" (22.9 cm) diameter conical ductile iron housing, and 2 greaseable tapered roller bearings.
Starting: Key Start
Steering System Description: Power steering with dedicated power source. Steering wheel tilts to desired operator position.
Tires - Front: 26" x 12" - 12", 6-ply, Tubeless Multi-Trac
Tires - Rear: 20" x 10" - 10", 6-ply, Tubeless Multi-Trac
Tool Box: Standard
Traction Drive: 4WD
Traction Drive (System): Parallel hydrostatic, closed loop system with full-time 4WD. Forward/reverse in low (mow) and high (transport) range with full-time, automatic traction assist (forward only) optional on Groundsmaster 4100-D models. Variable displacement piston pump with electronic servo control powers dual speed displacement piston motor drive into double reduction planetary in front, and mechanical axle in rear. Smart Power® feature controls traction speed to maintain optimal cutting blade speed.
Transport Width: 71" (180 cm) @ 2" (5 cm) HOC
Turning Circle (Diameter): Uncut circle: 0" diameter.
Weight: 4237 lbs. (1922 kg) with full fluids
Wheelbase: 55.5" (140 cm)
Width of Cut: 124" (315 cm)
