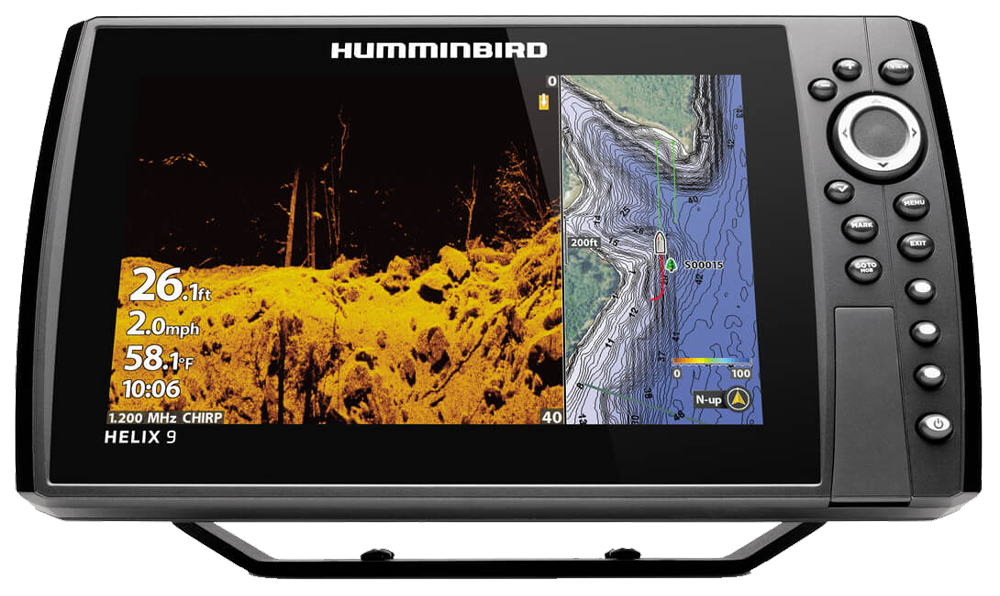

Humminbird Helix 9 Chirp MDI+ GPS G4N 411370-1

The HELIX 9 CHIRP MDI+ GPS G4N features a 9″ display, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and internal GPS with Humminbird Basemap. As with all HELIX G4N models, this HELIX 9 includes standard features such as AutoChart Live, Wi-Fi and NMEA 2000®, in addition to Bluetooth® and Ethernet networking for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon.

FEATURES:

Keypad control:

Master HELIX at the touch of a button. Access the preloaded views from the user-friendly menu system, operated by soft key controls that allow you to reliably operate your fish finder in any conditions.

MEGA Down Imaging+:

Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You’ll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Dual Spectrum CHIRP sonar:

Before you cast, know what’s down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

Internal GPS and Humminbird Basemap:

Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird’s LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.

AutoChart Live:

Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make the most of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.

NMEA 2000 networking built-in:

Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Includes control head, screen cover, transom mount transducer and mounting hardware, power cable, gimbal mounting bracket.

2-Year Limited Warranty

SPECS:

Model

HELIX 9 CHIRP MEGA DI+ GPS G4N

Product Code

411370-1

Series

HELIX

As shown MSRP

$1,199.99

Display Size – Diagonal

9 in

Display Pixel Matrix

1024H x 600V

Transducer Included

XM 9 HW MDI T

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Features

Networking, Down Imaging, Built In GPS, Bluetooth, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi

Memory Card Slot

Dual Micro SD

Sonar-Standard

Dual Spectrum CHIRP, MEGA Down Imaging+

Sonar-Coverage

20°, 42°, 45°, 75° @ -10dB

Sonar-Optional

50/83/200 kHz

CHIRP – Frequencies Supported

Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)

Sonar-Frequencies Supported

50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA

Depth-Sonar

3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)

CHIRP – Imaging Frequencies Supported

MEGA DI+ (1100-1200 kHz), 800 kHz DI+ (800-860 kHz), 455 kHz DI+ (420-520 kHz)

Depth-Down Imaging

200 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz)

Interface

Keypad Control

Power Draw

2.4 Amps

Power Input

10.8-20 VDC

Power Output Peak-to-Peak

8000 Watts

Power Output RMS

1000 Watts

Screen Snap Shot

Included

Sonar Recording

Mount-Standard

Gimbal

Mount-Standard Size

12.00 in W x 7.0 in H x 4.13 in D

Mount-Optional

In-Dash Mounting Kit

Mount-Optional Size

12.00 in W x 6.63 in H x 1.32 in D

Transducer Mount Location

Transom

GPS Chartplotting

GPS Receiver

Internal

GPS Trackplotting

Waypoints, Routes, Tracks/Points

2,750, 47, 50/20,000

MEGA 360 Imaging Compatibility

Yes

MEGA Live Compatibility

Humminbird Basemap

LakeMaster Compatibility

CoastMaster Compatibility

Navionics Gold/HotMaps Compatibility

Navionics Platinum+ Compatibility

Platinum Compatibility

Minn Kota i-Pilot Link Compatibility

Minn Kota Talon Shallow Water Anchor Compatibility

Radar Compatibility

5-Port Ethernet Switch Compatibility

AIS Compatibility

Optional

Autopilot Compatibility

Heading Sensor GPS Compatibility

NMEA2000

Target Separation

2.5 in

Upgradable Software

View Preset Keys

X-Press Menu System

Custom Digital Readout

Custom View Selections

Display Colors Grayscale

16-Bit

Display Type

Color TFT

Speed

Temperature

Built-In

Temperature Alarm

Temperature Graph

HDMI Compatible

No

Warranty

Two-Year Warranty
