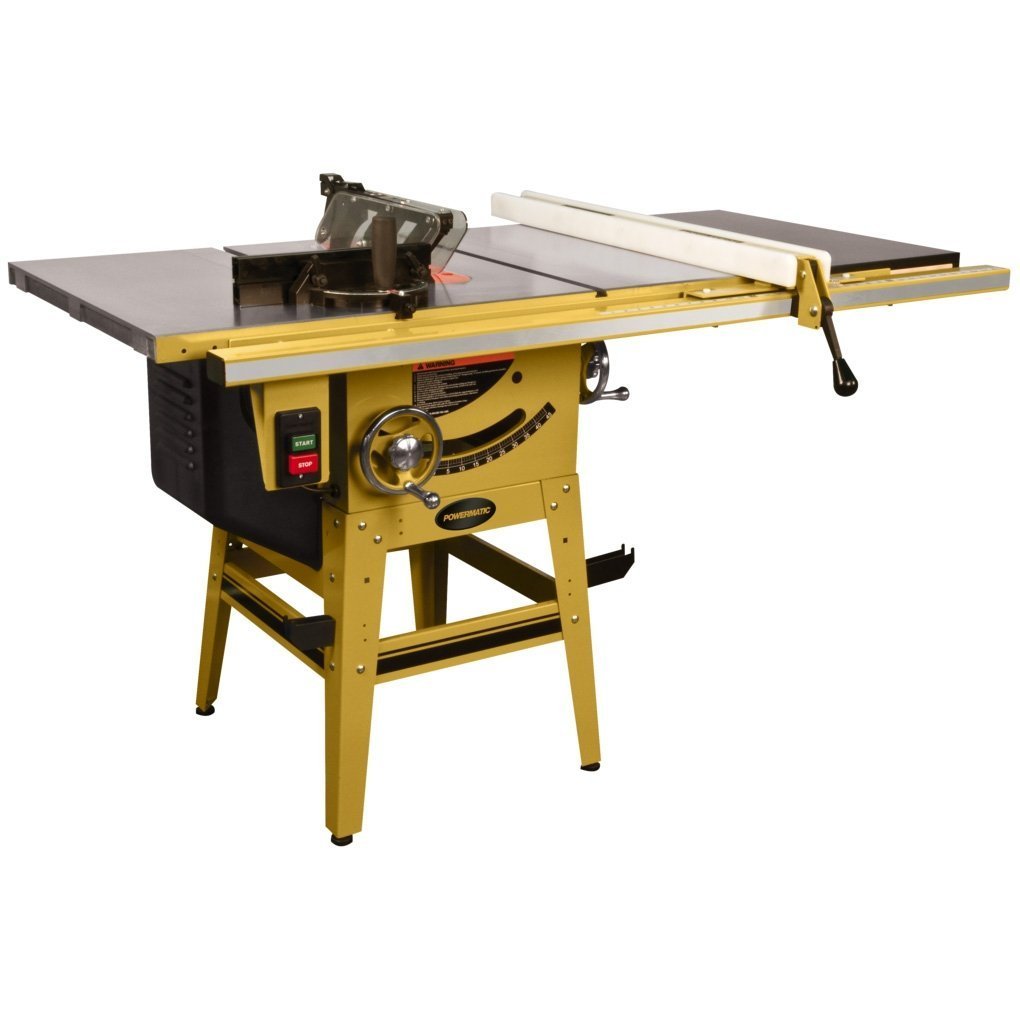

Powermatic 64B Table Saw

Powermatic 64B Table Saw, 1.75 HP, 115/230V, 30″ Fence with Riving Knife – PM9-1791229K

The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30″ or 50″ rip cut capacity. Storage hooks on the stand keep your accessories within reach.

Features:

Accu-Fence® locks to rail without play for increased safety and precision

Blade guard and riving knife have quick release for tool-less mounting and removal

Built-in dust port increases dust collection efficiency

Cast iron trunnion ensures smooth blade positioning

Chrome-trimmed handwheels are ergonomically designed

Micro-adjust miter gauge with extension plate offers wider crosscut support

Precision ground cast iron work surface features a beveled edge for smoother operation

Riving knife maintains close blade proximity to reduce chance of kickback

Stock Number

PM9-1791229K

Model Number

64B-30

Arbor Diameter (In.)

5/8

Arbor Speed (RPM)

3800

Blade Diameter (In.)

10

Dust Collection Minimum CFM Required (CFM)

350

Dust Port Outside Diameter (In.)

4

Gross Weight (Lbs)

304

Maximum Depth of Cut at 45 Degrees (In.)

2-1/8

Maximum Depth of Cut (In.)

2-1/8 or 3-1/8

Maximum Diameter of Dado (In.)

8

Maximum Rip Left of Blade (In.)

12

Maximum Rip Right of Blade (In.)

30

Maximum Width of Dado (In.)

13/16

Miter Gauge Type

T-Slot with Stops

Motor Amps

6

Motor Phase

1

Motor Power (HP)

1-3/4

Motor Voltage (V.)

115/230

Overall Dimensions (L x W x H) (In.)

71-1/4 x 43 x 42

Prewired Voltage (V.)

115

Recommended Circuit Size (Amps.)

20

Style (Type)

Contractor

Table Height from Floor (In.)

36

Table Size (L x W) (In.)

44-1/4 x 27

Table Type

Cast Iron

Warranty

5 Year

Gross Weight

421.85

Net weight

366.85

Prop 65

None
