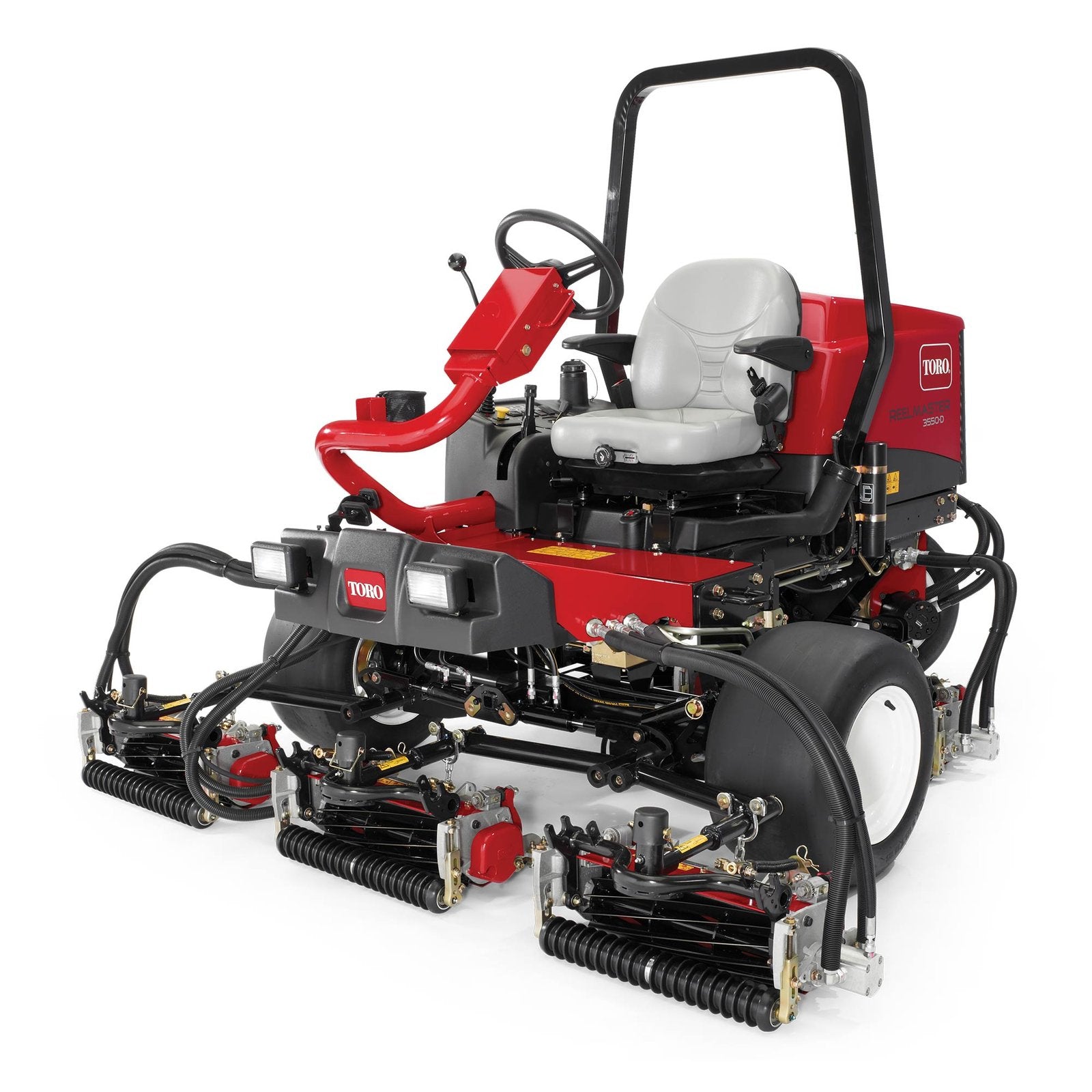

Reelmaster® 3550

The Toro® Reelmaster® 3550-D floats effortlessly over contours in fairways and green surrounds. With a productive 82" (2.1m) cutting width, turf-friendly tires, the superior traction of a Series/Parallel 3-wheel drive system, and a weight of less than 2,000 pounds, the Reelmaster® 3550-D is engineered to make a big impression...without leaving one.

Armrests: Standard

Battery: 12V

Bedknife Adjustment: Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) allows quick bedknife to reel adjustment.

Blade Style/Type: Reel

Blade Type (Description): EdgeSeries™ DPA radial or forward swept reels.

Clip Frequency/Backlapping: 5" reel 2,350 (+/- 150) rpm max reel speed, at highest setting. 200 rpm max at low idle and lowest setting for backlapping.

Controls: Foot operated controls: Forward and reverse traction pedal, mow/transport speed limiter. Hand operated on control panel: Parking brake lever, ignition switch, engine throttle lever, LED work light switch, on/off switch for cutting units, joystick for cutting unit lift and lower. Other controls: Steering wheel tilt control, reel speed control, backlap engagement lever.

Cooling System Description: Aluminum side-by-side oil cooler/radiator. 8.5 fins per inch, wavy fin, non-louvered. 5.25 quart (4.9 liter) capacity.

Cup Holder: Standard

Cutting Unit Accessories: Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets

Cutting Unit Lift/Lower: Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.

Cutting Unit Type/Configuration: Five hydraulically driven, balanced, DPA cutting Units. Frame precision manufactured, die-cast aluminum for increased strength, simple click adjustment maintenance.

Drivetrain: Diesel

Electrical System: Heavy-duty 12-volt battery, 570 CCA; 40 amp alternator/regulator. Electronic control unit is microprocessor based, solid state control unit with diagnostic capabilities.

Engine Cooling: Liquid Cooled

Fuel / Power Source: Diesel

Fuel Capacity: 7.5 U.S. gal. (28.4 L)

Fuel Filter: 10 micron spin-on filter with integral water separator.

Gauges/Instrumentation: Hour meter, fuel gauge, diagnostic lamp, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).

Ground Speed - Forward: 0 - 10 mph (0 - 16.1 km/h)

Ground Speed - Reverse: 0 - 3.5 mph (0 - 5.6 km/h)

Height: 74" (188 cm)

Height of Cut Range: 8-Blade: 0.5" - 1.5" (13 mm - 38 mm)11-Blade: 0.25" - 0.75” (6 mm -19 mm)

Hydraulic Fluid Capacity: 6 U.S. gal. (22.7 L)

Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid

IntelliDash™ Capable: Yes

Interlocks: Traction pedal neutral, parking brake, operator presence in seat, and cutting unit engage/disengage.

Lighting: Standard

Main Frame/Chassis: Formed steel, welded steel and steel tubing.

Max Slope Angle: Refer to operator's manual.

Mowing Speed: 0 - 7 mph (0 - 11.3 km/h)

Number of Blades: 11, 8

Oil Capacity: 3.5 U.S. qt. (3.3 L)

Oil Cooler Description: Pressurized lubrication system.

Optional Accessories: Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon)

Overall Width: 94" (238.8 cm)

Parking/Service Brakes: Hydrostatic service brake. Hand-operated parking brake.

Power Steering: Yes

Power Train (Engine Description): Kubota® liquid-cooled diesel engine, 3-cylinder, 22.9 hp (17.1 kW) @ 3000 RPM. Engine governed to 3220 RPM high idle (± 50 RPM), 1400 RPM low idle (± 50 RPM). Displacement: 68.5 cu.in. (1123 cc). Peak torque: 49.6 lbs-ft @ 2200 RPM. Tier IV compliant.

Product Length: 110" (279.4 cm)

Reel Diameter: 5 in. (12.7cm)

Reel/Cylinder Drive: Hydraulic

Rollers: Wiehle front roller and standard rear roller included. Optional front full and shoulder rollers, and short and long rear rollers available.

Safety/Operator Safety: 2-post ROPS and retractable seat belts standard.

Seat: Mechanical suspension standard.

Starting: Switch

Steering System Description: Power steering with tilt steering wheel.

Tires - Front: 22" x 12" - 12", 4-ply, No Tread

Tires - Rear: 22" x 12" - 12", 4-ply, No Tread

Traction Drive: 3WD

Traction Drive (System): Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse.

Transport Width: 91" (231 cm)

Weight: 1,985 lbs. (900.38 kg) with (5) 18" 8-blade cutting units.

Wheelbase: 59.5" (151.1 cm)

Width of Cut: 82" (208 cm)
