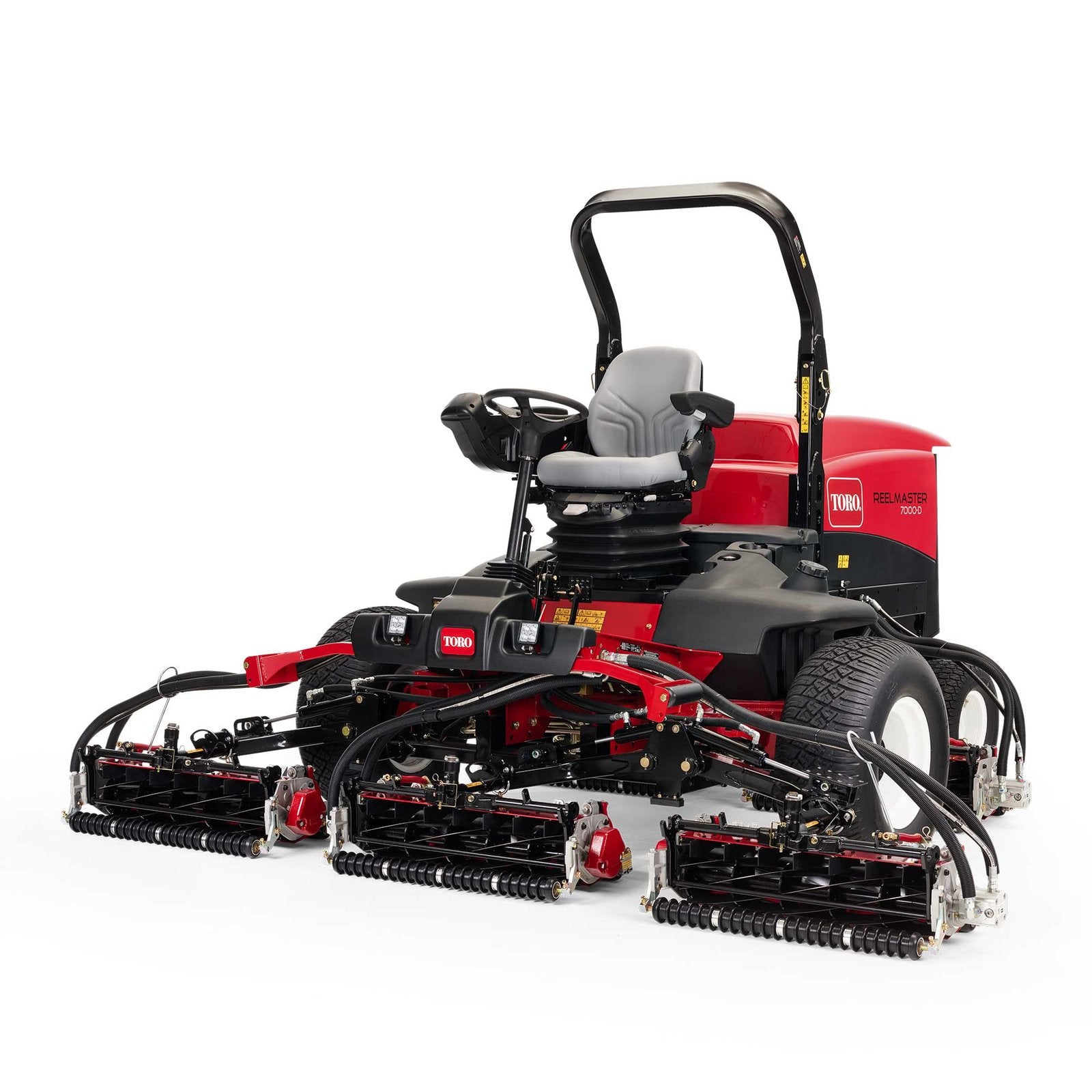

Reelmaster® 7000

The Toro® Reelmaster® 7000-D is equipped with a powerful 55 hp (41kW) Yanmar® diesel engine and a SmartCool™ temperature-activated, auto-reversing fan that automatically blows debris off the air intake screen to keep the engine cool. High-torque reel motors allow the Reelmaster 7000-D to power through tough scalping and verticutting jobs, resulting in high productivity. This product also features Toro’s industry leading EdgeSeries™ dual precision adjustment (DPA) cutting units. Available in 27 inch or 32 inch width. Optional standard air-ride suspension and an ergonomic control arm keeps operators comfortable and productive.

Air Filter: Dry, replaceable primary and safety elements.

Armrests: Standard

Battery: 12V

Bedknife Adjustment: Dual Precision Adjustment (DPA), bedknife to reel.

Blade Style/Type: Reel

Blade Type (Description): EdgeSeries™ DPA radial reels.

Cab Unit: N/A

Clip Frequency/Backlapping: Manually controlled, variable reel speed for control of clip frequency. Reel speeds are incrementally adjustable between 200 - 1,650 rpm with a backlap speed of 200 rpm.

Controls: Ignition switch, LED headlight switch, hand-operated throttle, foot-operated traction pedal, joystick for cutting unit lift, mow/transport selector switch, lockable individual brake pedals, park brake.

Cooling System Description: 9 row single pass cooler with tilt out for cleaning. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and manual reversing capabilities. Rear-mount aluminum radiator (6 fins per inch, 9 quart (8.5 liters) capacity).

Cup Holder: Standard

Cutting Unit Accessories: Rear Roller Brush Kit, Universal Groomer, Broomer

Cutting Unit Lift/Lower: Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.

Cutting Unit Type/Configuration: Hydraulically driven, with adjustable rear weight transfer spring. Interchangeable to all positions with rear throw capability.

Drivetrain: Diesel

Electrical System: 12-volt, 650 CCA battery, 80 amp alternator. Overload protection with automotive type fuses.

Engine Cooling: Liquid Cooled

Fuel / Power Source: Diesel / Biodiesel

Fuel Capacity: 22 U.S. gal. (83 L)

Fuel Filter: Spin-on fuel filter.

Gauges/Instrumentation: InfoCenter™: Onboard LCD display shows alerts, faults, service reminders, electrical systems diagnostics, coolant temp., low oil pressure, alternator, engine hours, engine rpm, voltage, reel speed, backlap speed, glow indicator, lift/lower indicator.

Ground Speed - Forward: 0 - 14 mph (0 - 22.5 km/h)

Ground Speed - Reverse: 0 - 7 mph (0 - 11 km/h)

Height: 87" (220 cm)

Height of Cut Range: 8-Blade: 0.5" - 2.5" (13 mm - 64 mm)11-Blade: 0.25" - 0.75" (6 mm - 19 mm)

Hydraulic Fluid Capacity: 8.25 U.S. gal. (31.3 L)

Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid

IntelliDash™ Capable: Yes

Interlocks: Starting, operator presence, mowing, transport and parking brake.

Lighting: Standard

Main Frame/Chassis: All welded formed-steel frame with integral tie-down anchors.

Max Slope Angle: Refer to operator's manual.

Mowing Speed: 0 - 7 mph (0 - 11 km/h)

Number of Blades: 11, 8

Oil Capacity: 6 U.S. qt. (5.7 L)

Oil Cooler Description: Aluminum side-mounted cooler. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and manual reversing capabilities

Optional Accessories: Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon), 2-post ROPS Extension Kit (with optional windshield, operator cooling fan, LED work lights, rotating amber beacon and safety and security cage)

Overall Width: 121" (307 cm) with 27" cutting units, 126" (320 cm) with 32" cutting units

Parking/Service Brakes: Mechanically actuated, internal wet disc brakes. Individual foot-operated steering brake control of left and right wheel or lock pedals together.

Power Steering: Yes

Power Train (Engine Description): Yanmar® 4-cylinder, liquid-cooled diesel engine, 55 hp (41 kW). Tier IV compliant.

Product Length: 136" (345 cm) with 27" cutting units, 141" (358 cm) with 32" cutting units

Reel Diameter: 7 in. (17.8cm)

Reel/Cylinder Drive: Hydraulic

Rollers: 3" (7.6 cm) diameter, deep groove plastic front Wiehle roller. 3.0" (7.6 cm) diameter steel rear roller (other roller configurations optional).

Safety/Operator Safety: 2-post ROPS and retractable seat belts standard.

Seat: Premium air ride suspension seat with full range of adjustments; retractable seat belt.

Starting: Switch

Steering System Description: Power steering with dedicated power source, tilt steering.

Tires - Front: 31" x 13.5" - 15", 4-ply, Turf Tire

Tires - Rear: 20" x 12" - 10", 4-ply, Turf Tread

Traction Drive: 4WD

Traction Drive (System): Full-time, bi-directional, hydrostatic, closed-loop, 4WD transmission. Optional 4WD Flow Divider Kit.

Transport Width: 94" (239 cm)

Turning Circle (Diameter): 119" (302.3 cm) transport

Weight: 4,300 lbs. (1950 kg) - with full fluids, no cutting units.

Width of Cut: 121" (307 cm) or 126" (320 cm)
