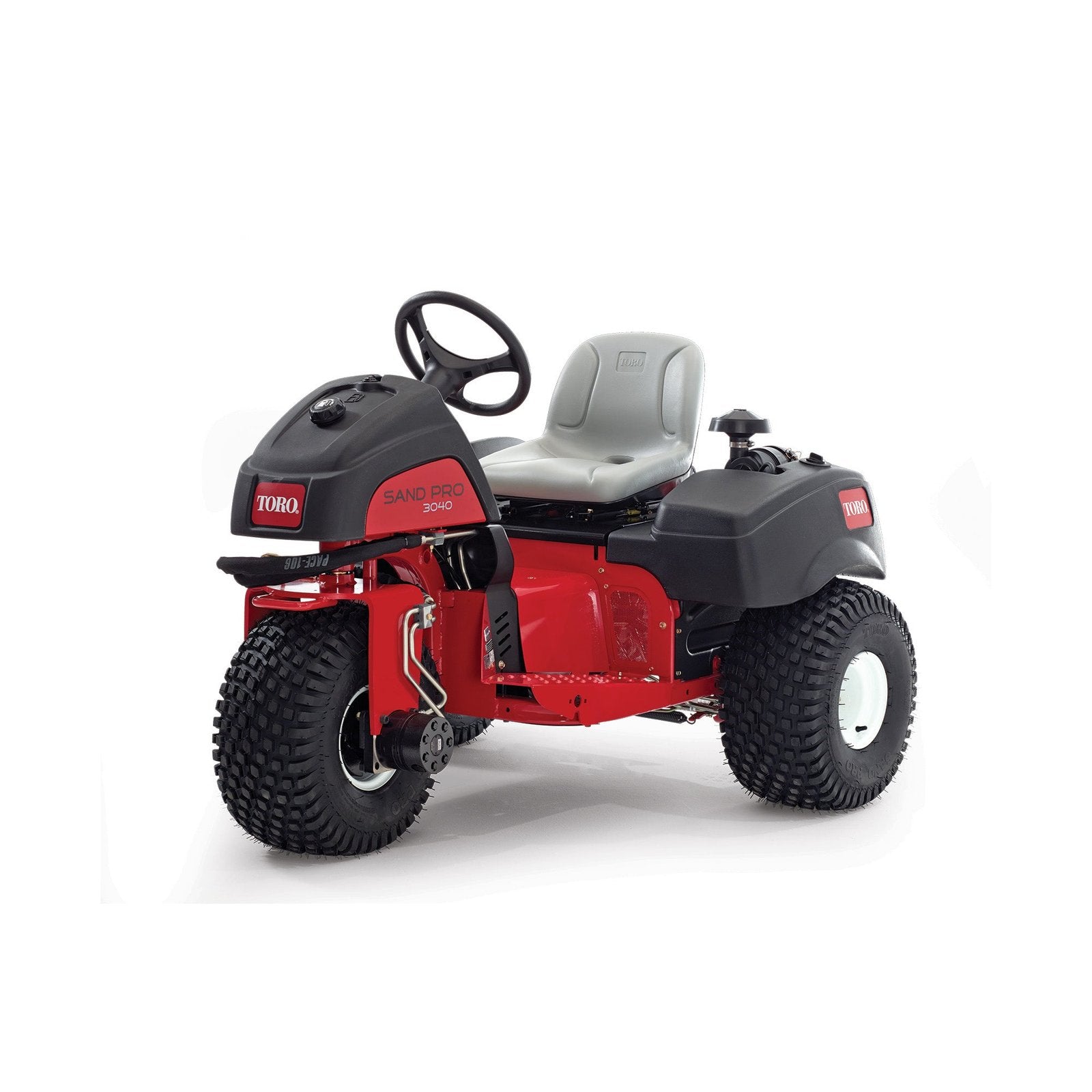

Sand Pro® 3040

It’s time to demand more from your bunker rake. With the exclusive Quick Attach System (QAS) offering tool-free, quick attachment change outs and over 25 valuable attachments, the Sand Pro 3040 and 5040 are versatile utility vehicles with as many uses outside the bunker as in it. The Sand Pro 5040’s optional front QAS provides added flexibility and exclusive steerable front attachments for surgical precision. The Toro Sand Pro keeps bunkers in tournament condition every day.

Air Filter: Remote mounted 3-phase Donaldson® air cleaner

Battery: 12V

Controls: Hand operated choke, throttle, and hydraulic control for raising/lowering with float. Foot pedal controls traction forward/reverse speed. Rear hydraulic lift and lower controls.

Cooling System: Air Cooled

Displacement: 480cc (29.3 cu. in.)

Drivetrain: Gas

Frame: Tricycle vehicle with welded rectangular tubular steel frame construction. Rear engine placement.

Fuel / Power Source: Gasoline

Fuel Capacity: 5.0 gallon (18.9 liter)

Gauges/Instrumentation: Hour Meter

Ground Clearance: 6.0" (15.2 cm)

Ground Speed - Forward: 0 - 10 mph (0 - 16 km/h)

Ground Speed - Reverse: 0 - 4.3 mph (0 - 6.9 km/h)

Height: 45.25" (114.9 cm)

Hydraulic Oil: Toro PX Hydraulic Oil; 7.0 gallon (26.4 liter) system capacity. Polyethylene reservoir to reduce corrosion. 10 (nominal) micron replaceable cartridge.

Interlock: Neutral interlock switch, seat switch

Oil Capacity with Filter: 1.75 quart (1.8 liter)

Optional Accessories: QAS A-Frame Assembly, 400-Hour Filter Maintenance Kit, Rear Remote Hydraulics, Variable Orifice Kit, Light Kit, Speed Control Kit, Hitch/Tow Bar, Front Weight Kit, Smooth Tire, Turf Tire

Overall Width: 58" (147 cm)

Parking/Service Brakes: Hand actuated brake lever

Power Steering: No

Power Train (Engine Description): Vanguard®, V-twin cylinder, 4-cycle, OHV, air-cooled, gas engine with cast iron sleeves. 16 hp (11.9 kW) at 3600 rpm. Displacement: 29.3 cu. in. (480 cc). Electronic ignition. Full pressure lubrication, oil filter. Base mounted engine and pump with 4 isolation mounts.

Product Length: 67.5" (171.5 cm)

Rear Attachment Hydraulic Lift: Standard

Sound Level: 83 dB(A) at operator ear, under normal operating conditions

Starting: Key Start

Steering System Description: Manual front wheel steering. 15" (38 cm) diameter steering wheel.

Tires - Front: 22" x 11" - 8", 2-ply, Knobby Tread

Tires - Rear: 22" x 11" - 8", 2-ply, Knobby Tread

Traction Drive: Direct driven hydrostatic variable displacement piston pump to 3 hydraulic motors for 3WD. Large, front mounted hydraulic cooler and fan. Foot pedal control, forward/reverse. Patented Series/Parallel hydraulic traction system keeps three wheels working together, virtually eliminates spin-outs.

Traction Drive (System): 3WD

Vehicle Configuration: Standard

Weight: 930 lbs. (421.8 kg), net weight less fluids

Wheelbase: 42.75" (108 cm)
