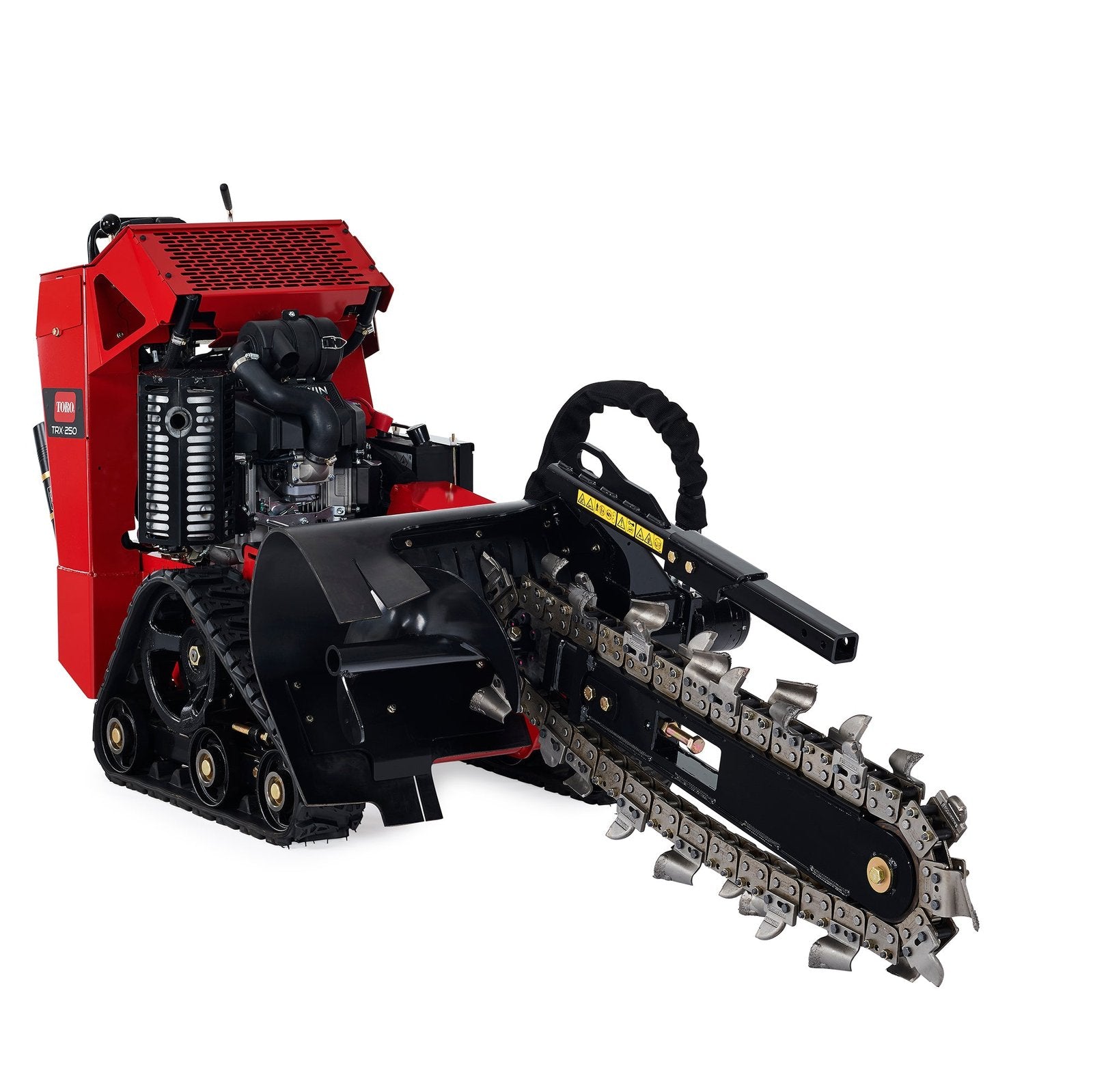

TRX-250 Walk-Behind Trencher

Toro TRX walk-behind trenchers are now more efficient and powerful than ever. We’ve improved our lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.

Boom Depths: 24 in., 36 in., & 48 in. / 60.9 cm, 91.4 cm & 121.9 cm

Boom Widths: 4 in. & 6 in. / 10.1 cm & 15.2 cm

Cooling System: Air Cooled

Engine Horsepower: 24.5 hp (18.3 kW) @ 3,600 rpm

Engine Make: Toro

Engine Model: V-Twin

Fuel Tank: 4 gal. / 15.1 L

Fuel Type: Gasoline

Ground Pressure w/ 24" (60.9 cm) Boom: 4.1 PSI

Ground Pressure w/ 36" (91.4 cm) Boom: 4.4 PSI

Ground Pressure w/ 48" (121.9 cm) Boom: 4.5 PSI

Headshaft Speed: 210 rpm with 498 ft/lbs of torque

Hour Meter: Standard

Hydraulic Flow Traction - Transport: 16.2 GPM (61.3 LPM)

Hydraulic Flow Traction - Trenching: 3.0 GPM (11.4 LPM)

Hydraulic Flow Trencher: 13.2 GPM (50 LPM)

Hydraulic Oil Cooler: Standard

Hydraulic Pressure: 2,670 PSI (18,409.0 kPa)

Oil Capacity: 2.5 qt / 2.4 L

Overall Height w/ 24" Boom Up & Chain: 46 in. / 116.8 cm

Overall Length w/ 24" Boom Up & Chain: 82.5 in. / 209.5 cm

Overall Width w/ 24" Boom Up & Chain: 33.8 in. / 85.8 cm

Reservoir Capacity: 6.3 gal. / 23.8 L

Start Method: Electric

Tracks Drive: Sprocket-drive, 3 Road Wheels Per Side

Tracks Material: Endless Nylon Reinforced Rubber

Tracks Traction: Two-section Hydraulic Pump With Two Hydraulic Motors (one for each track)

Tracks Width: 5.9 in. / 14.9 cm

Transport Speed - Forward: Up tp 2.4 mph / 3.9 km/h

Transport Speed - Reverse: Up to 1.2 mph / 2.4 km/h

Weight: 1,104 lbs / 500 kg

Wheelbase: 23 in. / 58.4 cm
